Introduction
When operating a pump system, one of the biggest concerns engineers and operators face is the risk of backflow. Backflow occurs when fluid reverses direction in a pipeline, which can damage equipment, reduce efficiency, and even contaminate clean media. To avoid these issues, check valves play a vital role. Also called non-return valves, one-way valves, or isolation valves, check valves allow fluid to flow in only one direction and automatically prevent reverse flow without the need for external control.
In this guide, we’ll break down the principle of check valves, their working types, how to choose the right valve for your application, and why they are so critical for pump systems and pipelines. By the end, you’ll have a practical understanding of how check valves protect your system and how to select the most suitable type for your project.
How Check Valves Work
A check valve operates on a very simple principle: it uses pressure differences in the pipeline to open and close automatically. The moving part inside the valve—called the disc or flap—is pushed open when the fluid pressure from the inlet side is strong enough. Once the pressure drops or the fluid tries to reverse direction, the disc closes, blocking any backflow.
There are two primary movement mechanisms for the disc:

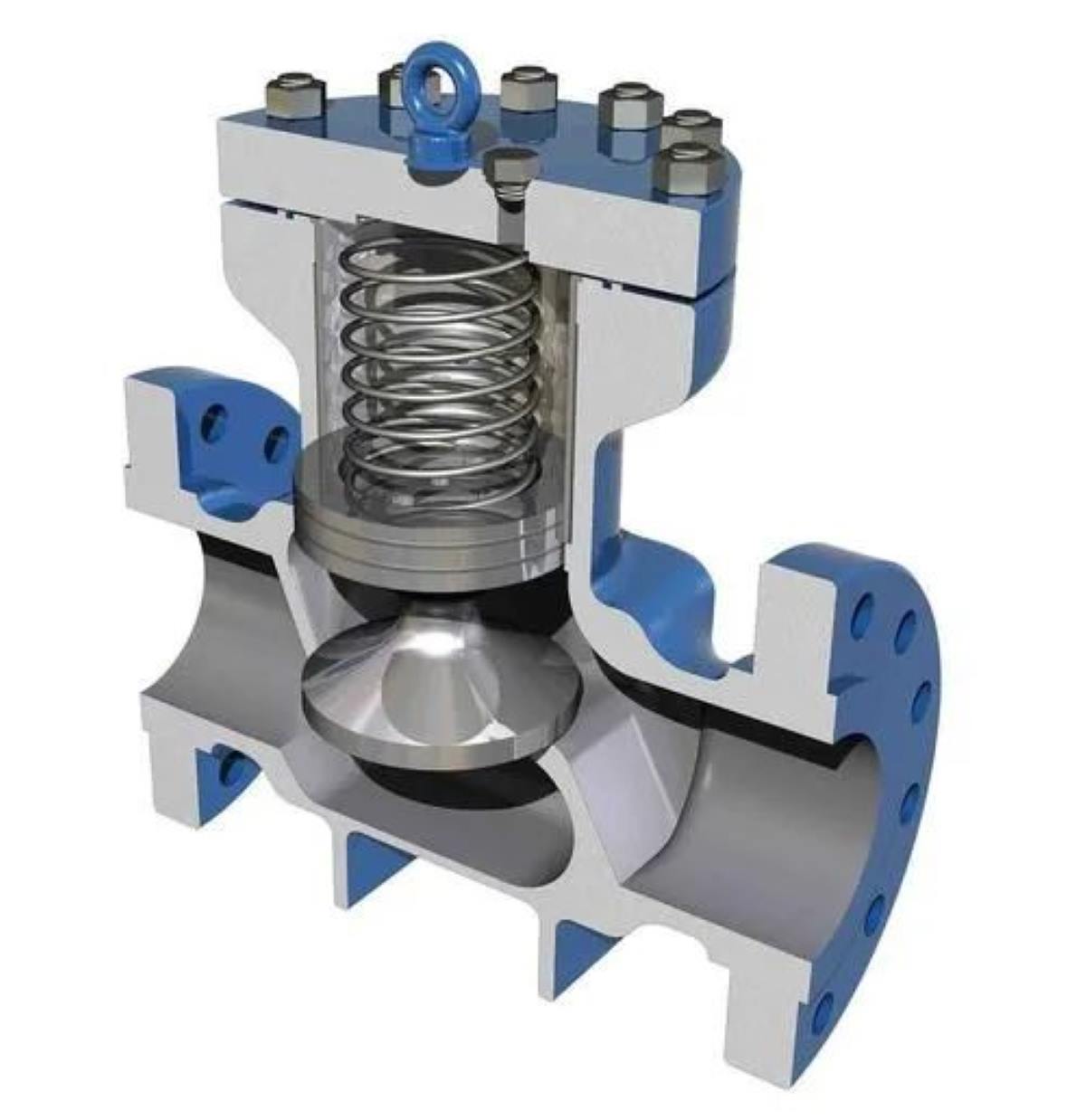

1. Lift Check Valves – These resemble globe valves but without a stem. The disc moves up and down, lifted by fluid pressure to allow forward flow and dropping back down to block reverse flow. They are often installed horizontally.

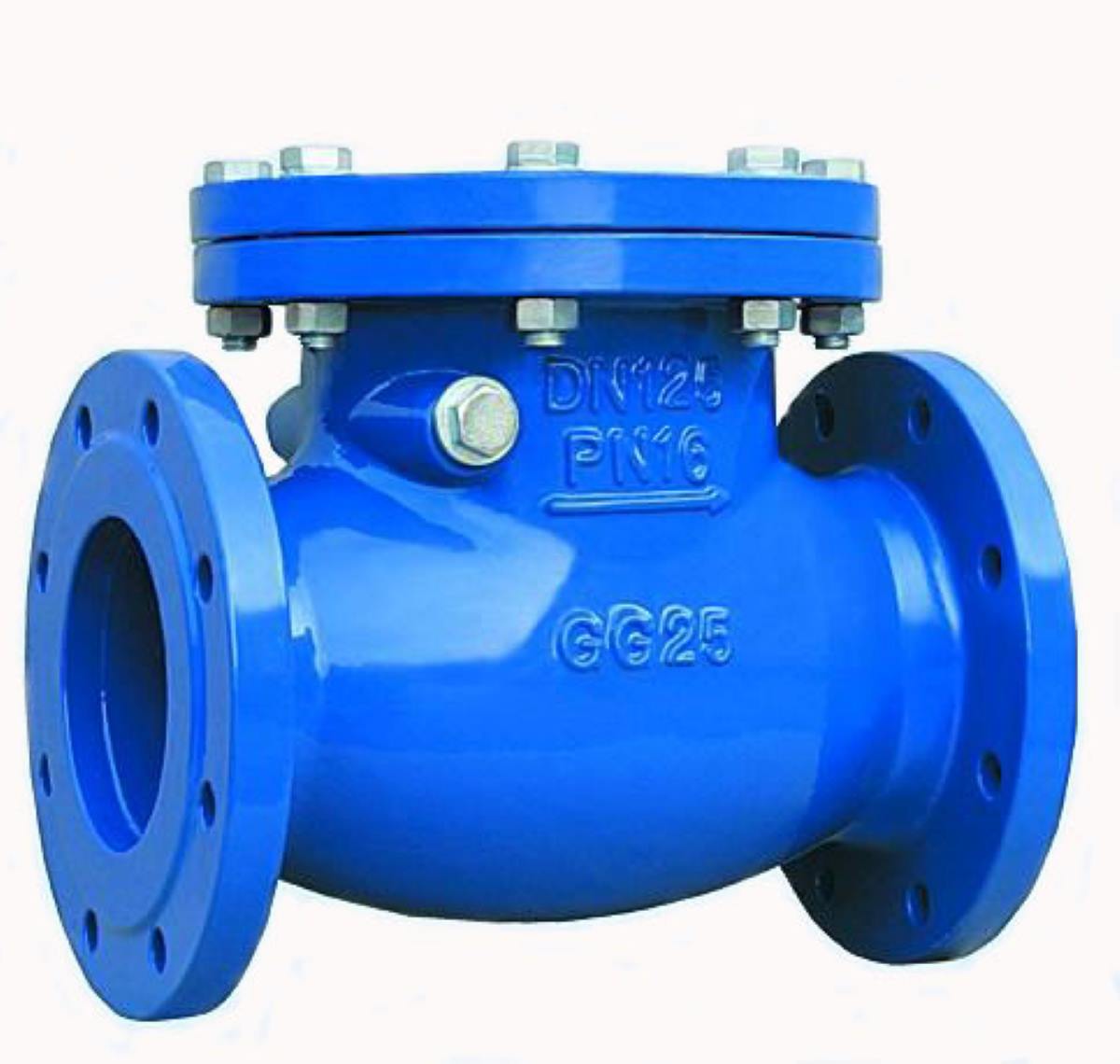

2. Swing Check Valves – These use a hinged disc that swings open when fluid flows forward and swings shut when flow reverses. They can be installed in multiple positions (horizontal, vertical, or inclined).
Other specialized types include butterfly check valves, diaphragm check valves, ball check valves, and foot valves. Each design addresses specific flow conditions, pressure levels, and fluid characteristics.
While check valves are generally simple in operation, they do have some limitations. For example, lift check valves can introduce higher resistance, and swing check valves may have poorer sealing under certain conditions. Still, when properly selected, they are essential for ensuring safe and efficient pump operation.
Key Selection Guidelines
Choosing the right check valve isn’t just about picking any one-way valve—it requires careful consideration of operating conditions, fluid properties, and installation requirements. Here are the main guidelines based on industry standards:
1. Always install a check valve where reverse flow must be prevented. This applies to pumps, compressors, and piping systems that handle valuable or sensitive fluids.
2. Match the valve type to the fluid.
- Clean fluids work best with standard lift or swing check valves.
- Fluids with particles or high viscosity may require ball or diaphragm check valves to avoid clogging.
3. Consider installation orientation.
- Lift check valves are best for horizontal pipelines.
- Swing check valves can be installed in almost any position but are often used for larger diameters and lower pressures.
- Foot valves are ideal for pump suction lines, particularly vertical lines with upward flow.
4. Size and pressure rating matter.
- High-pressure systems (up to 42 MPa) often use swing check valves due to their strength and availability in large diameters (up to 2000 mm).
- For smaller diameters (<50 mm), lift check valves or diaphragm valves are recommended.
- For medium-to-large diameters at lower pressure, ball check valves or butterfly check valves are more efficient.
5. Account for water hammer. Sudden closure of a valve can cause dangerous pressure surges known as water hammer. In such cases, slow-closing swing or butterfly check valves are recommended to reduce impact.
6. Evaluate compressibility of the fluid.
- For incompressible fluids (like water), closing speed and impact are key.
- For compressible fluids (like gases), valves may need damping or auxiliary devices to control opening and closing.
In short, correct selection depends on both technical data and the specific application environment. Consulting with valve suppliers for detailed flow and pressure curves is often necessary to ensure optimal performance.
Applications of Check Valves
Check valves are found in almost every industry that handles fluids. Their ability to prevent reverse flow makes them indispensable in:
- Oil and Gas Industry – Protecting critical pipelines, preventing costly backflow, and ensuring safe operation in both upstream and downstream facilities.
- Chemical Processing – Avoiding contamination between different chemicals, which is crucial for safety and product quality.
- Food and Beverage Production – Maintaining hygienic conditions by preventing cross-contamination between water, raw materials, and final products.
- Building Services – In HVAC and plumbing, check valves prevent mixing between clean and waste water, ensuring safety and compliance.
- Municipal Water Supply – Preventing pumps and motors from running in reverse and protecting storage tanks and reservoirs from backflow.
Each of these applications shows that check valves are not just optional—they are critical for protecting both equipment and people.
Why Check Valves Are Essential
The importance of check valves in pump and piping systems can’t be overstated. They:
- Prevent backflow– Protecting pumps, compressors, and pipelines from damage.
- Protect against water hammer– Reducing pressure surges that can crack pipes or damage seals.
- Maintain system efficiency– Ensuring fluid flows in the intended direction without interruptions.
- Ensure product quality– Preventing contamination and maintaining fluid purity.
- Support safety and reliability– Reducing the risk of accidents, leaks, and costly downtime.
Without check valves, modern fluid systems would face frequent breakdowns, contamination risks, and high maintenance costs.
Conclusion
Check valves may seem like simple components, but their role in pump systems and pipelines is crucial. By allowing one-way flow and automatically blocking reverse flow, they protect pumps from running backward, reduce water hammer, and ensure overall system safety.
When selecting a check valve, engineers must consider fluid properties, pressure, flow direction, installation layout, and safety requirements. The right choice not only prevents costly failures but also improves efficiency and reliability.
In short, if you want your pump system to run smoothly and safely, a properly selected check valve is not just a recommendation—it’s a necessity.
